If you own an angle grinder and work with metal, you'll eventually need a depressed center grinding wheel. These wheels look different from standard grinding discs because the center sits lower than the edge, which makes them ideal for certain jobs. Understanding what size you need and how to check compatibility with your grinder will save you frustration and keep you safe.

What Is a Depressed Center Grinding Wheel?

A depressed center grinding wheel is designed specifically for angle grinders. The depression in the center allows you to use the wheel at different angles without the sides hitting your workpiece. This design makes them perfect for grinding ferrous metals like iron, steel, and welds. The United Abrasives-SAIT 20076 A24R General Purpose/Long Life Grinding Wheel is built on this principle and is one of the most common types you'll find for general purpose work.

The key difference between this wheel and others is its grain composition. The special aluminum oxide grain is engineered to remove stock consistently while lasting longer than cheaper alternatives. This means fewer wheel changes and better value over time.

Understanding the Specifications and Size Codes

When you look at grinding wheel specifications, you're seeing a standardized sizing system that tells you exactly whether a wheel fits your grinder. For the United Abrasives SAIT 20076 A24R, the critical numbers are: 6 inch diameter, 1/4-inch thickness, and 5/8-11 inch arbor size.

The 6-inch diameter refers to the overall size of the wheel itself. This is the measurement across the wheel from edge to edge. The 1/4-inch thickness tells you how thick the cutting surface is. The 5/8-11 arbor size is the hole in the center where the wheel mounts onto your grinder's spindle. This number must match your grinder exactly. If your grinder has a different arbor size, this wheel simply won't fit, no matter what else is compatible.

Check your grinder's manual or the spindle itself to find your arbor size before buying. Most common angle grinders use either 5/8-11 or M14 arbor sizes, so verify which one you have. The maximum RPM rating of 10,200 also matters—your grinder should not exceed this speed, which you'll find in your grinder's specifications.

When to Use a Depressed Center Wheel

The United Abrasives SAIT 20076 A24R is marketed as a general purpose wheel, which means it works on ferrous metals: iron, steel, welds, and similar materials. If you're grinding stainless steel or non-ferrous metals, you need a different wheel. Using the wrong wheel type for your material creates safety risks and produces poor results.

The long life aspect of this wheel matters in practice. You'll get more grinding done before the wheel wears down enough to need replacement. In workshop environments where grinding happens regularly, this durability reduces downtime and the cost of frequent replacements.

Safety Features and Construction

The construction of this wheel includes internal reinforcement with fiberglass, which adds strength and safety during operation. The Super-Lock Hub system combines both mechanical locking and chemical bonding. This dual approach reduces vibration and provides one of the safer designs available. When you're working with a spinning wheel at high speed, a stable, vibration-free wheel makes a real difference in both control and comfort.

Care and Replacement

Grinding wheels aren't permanent. Over time, the abrasive grains wear away and the wheel becomes smaller and less effective. When a wheel becomes too small or worn, replace it rather than trying to extend its life. Store unused wheels in a dry place to prevent damage to the fiberglass reinforcement.

The 10-pack format means you have multiple wheels on hand, reducing the chance of running out mid-project. This is practical for regular users but may be more than someone needs if they only grind occasionally.

Before each use, inspect your wheel for cracks or damage. A damaged wheel is unsafe and should not be used. If you hear unusual vibration or the wheel doesn't spin smoothly after installation, stop and check that the arbor size matches and that the wheel is seated correctly on your grinder.

When you're ready to buy depressed center grinding wheels like the United Abrasives-SAIT 20076 A24R General Purpose/Long Life Grinding Wheel, remember that size compatibility and material compatibility are non-negotiable. Take five minutes to verify your grinder's arbor size and maximum RPM, confirm you're grinding ferrous metals, and you'll have a smooth experience with the right tool for your work.

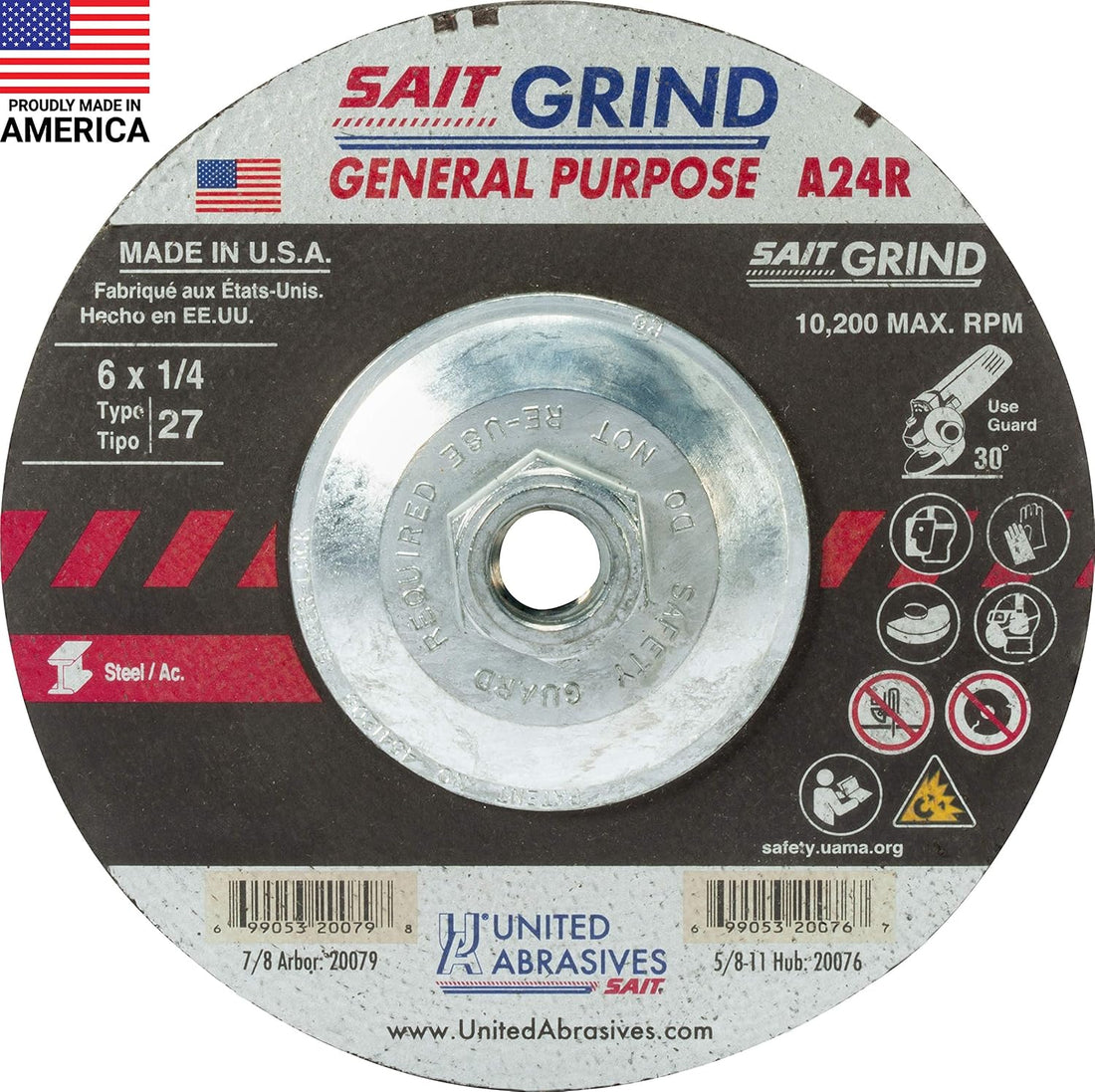

The product in this guide: United Abrasives-SAIT 20076 A24R General Purpose/Long Life Grinding Wheel (Type 27/Depressed Center) 6" x 1/4" x 5/8-11", 10-Pack
