Most home and small office networks rely on a single internet connection, so a standard router handles everything fine. But there are situations where splitting traffic across multiple connections makes genuine sense: redundancy if one connection fails, load balancing to prevent bottlenecks, or simply having backup internet when your main line goes down. If these sound relevant to you, a multi-WAN gigabit VPN router like the TP-Link ER605 V2 is worth understanding.

What Multi-WAN Actually Means

A multi-WAN router accepts internet connections on more than one port. Most home routers have just one WAN port (where you plug in your modem or fiber connection). The TP-Link ER605 V2 offers something different: one dedicated WAN port plus two ports that can act as either WAN or LAN, plus a USB port that accepts a 4G or 3G modem for mobile backup. This means you could theoretically connect up to three separate internet sources simultaneously.

Why do this? Load balancing distributes traffic across connections so no single line gets overwhelmed. Failover means if your primary connection drops, devices automatically route through another one without interruption. It's particularly useful for small businesses, home offices handling video calls, or anyone running services that can't afford downtime.

Understanding the TP-Link ER605 V2's Port Configuration

The naming here matters because it affects how you can actually use this router. You get five gigabit ethernet ports total: one dedicated WAN port, two ports that switch between WAN and LAN roles, and two additional LAN ports. The USB WAN option lets you plug in a compatible mobile modem as a third connection source.

This flexibility is the real advantage. You might use your primary internet connection on the dedicated WAN port, connect a second provider's modem to one of the switchable ports, and add mobile backup through USB. Or you might use all the ports as LAN connections if you only have one internet source but need more wired devices on your network. The router lets you configure which setup matches your situation.

Before buying, verify which modems work with the USB WAN feature. TP-Link maintains a compatibility list on their website, and not every 4G or 3G modem works with this router. If mobile backup is important to you, check that list first.

Security Features That Matter in Multi-WAN Setups

Running multiple connections increases complexity, which is why the ER605 V2 emphasizes security. It includes an SPI firewall, DoS defense, IP and MAC filtering, and URL filtering. More importantly for multi-WAN setups, it supports VPN connections: up to 20 LAN-to-LAN IPsec connections, 16 OpenVPN connections, 16 L2TP, and 16 PPTP connections.

If you're managing traffic between office locations or need encrypted tunnels for sensitive traffic, these VPN capabilities matter. The router also supports Omada SDN integration, which is TP-Link's software-defined networking platform for managing multiple network devices from one place. This appeals to small businesses but is probably unnecessary for home networks.

Is This Router Right for You?

Before committing, ask yourself honestly: do I actually need multiple simultaneous internet connections? If your answer is no, a standard gigabit router serves you better and costs less. Multi-WAN routers add complexity to setup and configuration that you only justify if the benefit is real.

You genuinely need this type of router if you run a small business with multiple locations, need continuous uptime and can afford backup connections, operate services like VoIP where call quality matters, or live in an area where internet reliability is poor. You're also a candidate if you regularly max out a single connection's speed and have actual multiple providers available.

For typical home internet browsing, streaming, and video calls on a single connection, the TP-Link ER605 V2 is overkill. Standard routers are simpler to set up and maintain.

Setup and Maintenance Considerations

Multi-WAN routers require more configuration than standard ones. You'll need to decide load balancing rules, failover priorities, and which devices or traffic types route through which connection. This isn't difficult, but it's not automatic either. Plan to spend time in the router's settings initially.

Once configured, maintenance is straightforward: keep the router in a well-ventilated location, avoid blocking airflow around it, and don't expose it to extreme heat or moisture. Firmware updates come through the management interface and should be applied when available, especially for security patches. The device operates on standard 100-240V power, so voltage isn't a concern when traveling between regions.

The TP-Link ER605 V2 is a specialized tool for people with genuinely specialized needs. If your situation calls for multiple simultaneous connections and robust failover capability, it's worth the investment. Otherwise, save your money and go with a standard gigabit router.

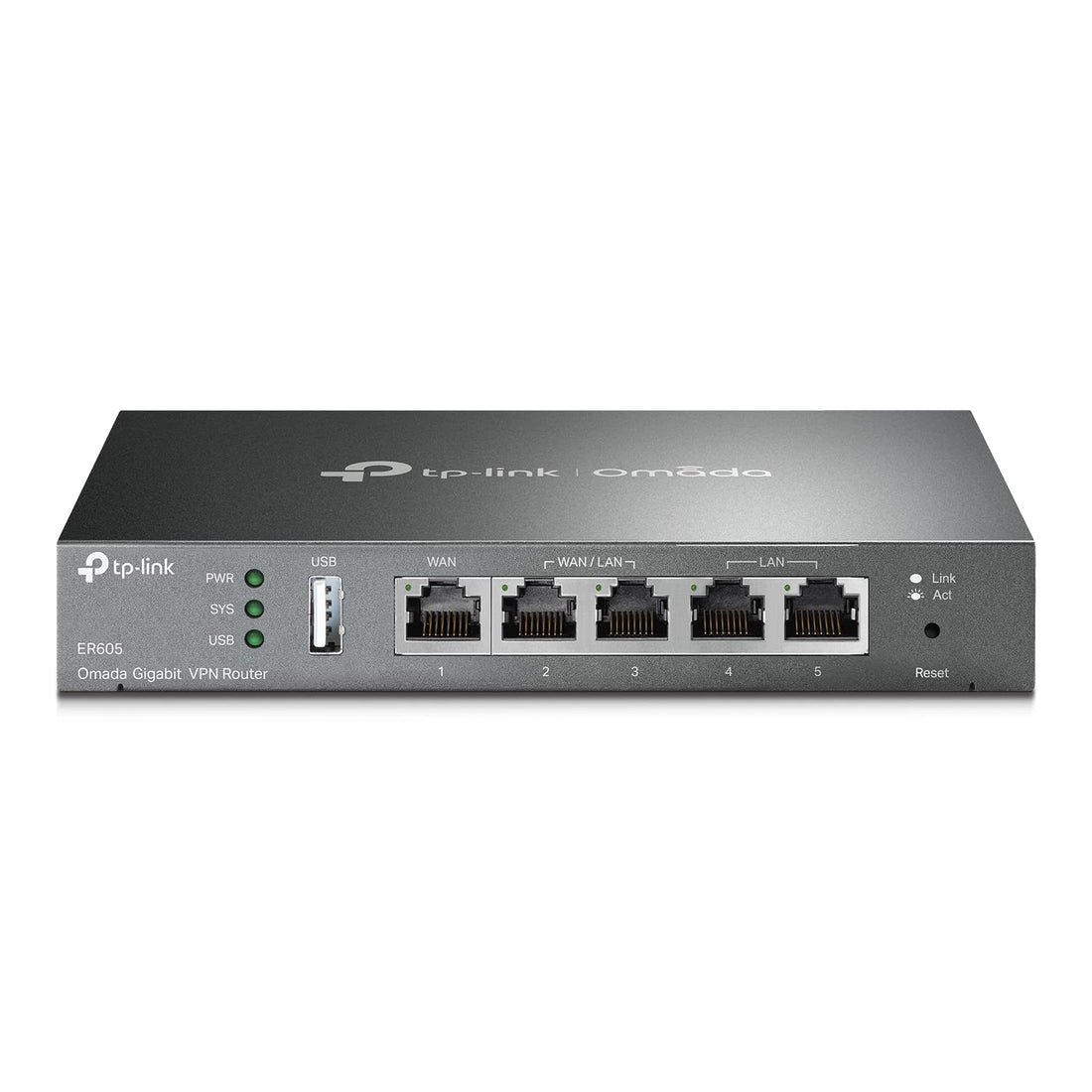

The product in this guide: TP-Link ER605 V2 Wired Gigabit VPN Router, Up to 3 WAN Ethernet Ports + 1 USB WAN, SPI Firewall SMB Router, Omada SDN Integrated, Load Balance, Lightning Protection
