If you're replacing worn cabinet hinges or upgrading to soft-closing hardware, understanding the right specifications makes the difference between a smooth installation and frustration. Soft opening kitchen cabinet hinges like the Probrico Soft Opening Kitchen Cabinet Hinges 10 Pair are popular replacements, but they only work if your existing doors match the hinge dimensions. This guide explains what the numbers mean and how to measure your cabinets correctly.

What Makes Soft Opening Hinges Different

A soft opening hinge works differently from a standard cabinet hinge. When you push the door open past 45 degrees, it stays in whatever position you leave it rather than swinging all the way open or slamming shut. This is useful in kitchens where you want to leave a cabinet door partially open while loading or unloading items. The Probrico Soft Opening Kitchen Cabinet Hinges support a full 110-degree range of motion, which gives you flexibility in how far you want to open your doors.

Understanding the Cup Size and What It Means for Your Doors

The most important specification you need to know is the cup size. The Probrico hinges have a 35mm by 11.5mm cup size. This measurement refers to the diameter and depth of the recess that gets drilled into your cabinet door to seat the hinge. If your existing hinges already have a 35mm cup, the Probrico hinges will fit directly into those same holes. If they don't match, you'll need to drill new holes, which is a more involved job. Before ordering, remove one hinge from your existing cabinets and measure the cup diameter with a ruler or calipers. A 35mm cup is standard for most modern kitchen cabinetry, but older cabinets sometimes use different sizes.

Checking Your Door Thickness Range

The Probrico hinges are designed for doors between 14 and 20 millimeters thick. This is another critical measurement that determines whether these hinges will work for you. To check your door thickness, close a cabinet door and measure the edge from one surface to the other. Most solid wood kitchen cabinet doors and plywood doors fall within this range, but some specialty cabinets, glass-fronted doors, or hollow-core cabinet doors may not. If your doors are thinner or thicker than this range, you'll need to look for hinges with a different thickness range.

Face Frame Mounting and Full Overlay Doors

The Probrico hinges are specifically designed as face frame mounting, full overlay hinges. This matters because it determines where the hinge sits relative to your cabinet frame. A full overlay hinge means your cabinet door will cover the entire front of the cabinet frame when closed, with the hinge mechanism concealed. Face frame mounting means the hinge attaches to the face frame of the cabinet rather than to the cabinet's sides. Check your existing cabinets to confirm they use this style. If your cabinets have a half-overlay setup, where the door covers only part of the frame, or an inset setup, where the door sits inside the frame, you need different hinges.

Installation and Long-Term Care

The Probrico package includes mounting screws and plates, which simplifies the replacement process. Installation requires accurate drilling for the cup size and straight attachment of the hinge to the frame. Once installed, soft opening hinges require minimal maintenance. The zinc alloy construction with nickel-plated finish resists rust and corrosion in typical kitchen environments, though they perform better in kitchens without high humidity or salt spray exposure. Periodically wipe hinges with a dry cloth to prevent dust buildup. Soft opening hinges are built to last as long as standard hinges when properly installed.

Before committing to the Probrico Soft Opening Kitchen Cabinet Hinges 10 Pair, verify that your doors are between 14 and 20 millimeters thick and that your existing hinges use a 35mm cup size. Confirm your cabinets use full overlay face frame mounting. With those measurements confirmed, these hinges deliver reliable soft opening performance across multiple cabinet doors.

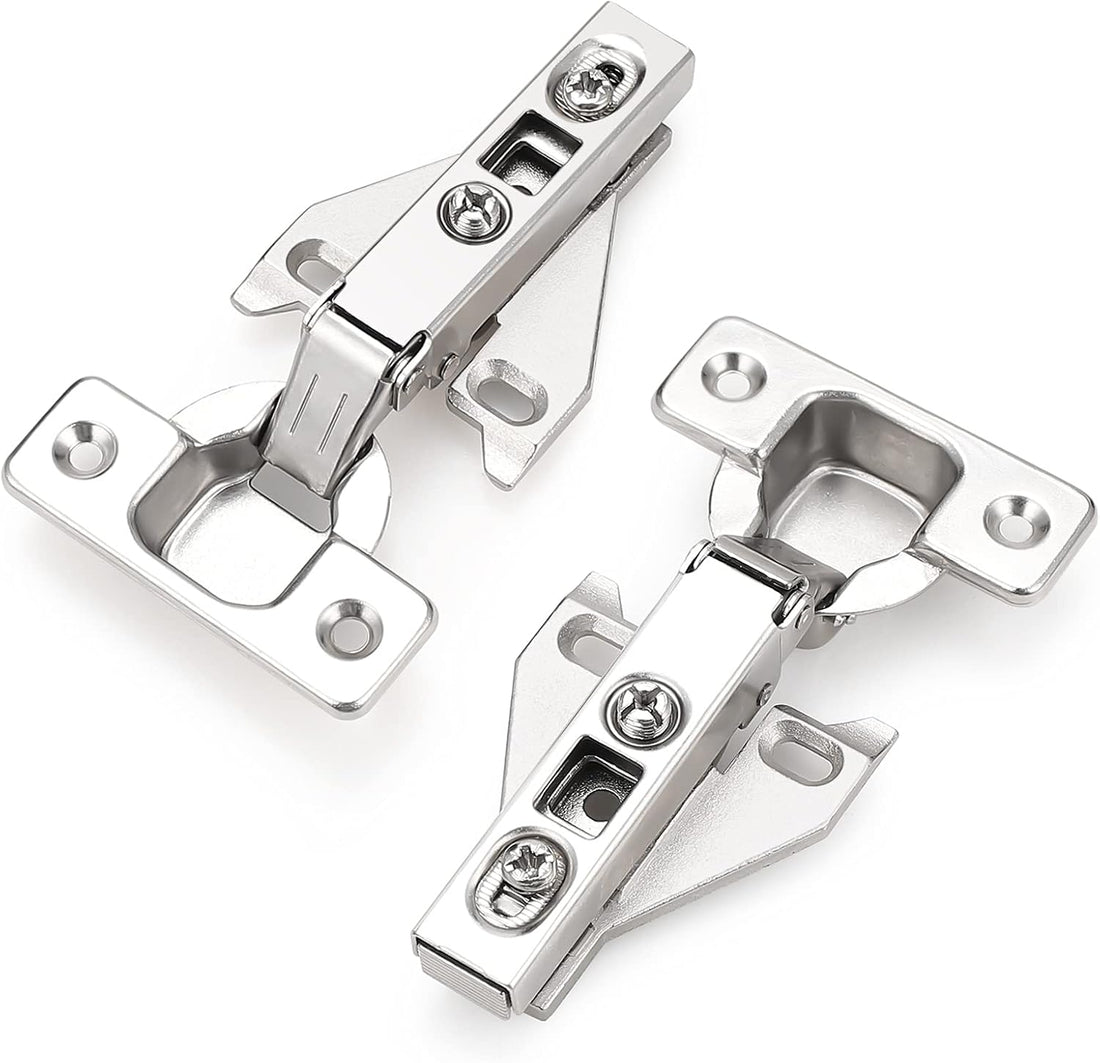

The product in this guide: Probrico Soft Opening Kitchen Cabinet Hinges 10 Pair (20 Pack), Brushed Satin Nickel Face Frame Mounting Concealed Hinges for Kitchen Cupboard Hardware, with Mounting Screws
