If you're shopping for electrical switches, you've probably noticed there are far more options than you'd expect. The Leviton 5334-W is a commercial-grade combination switch that appears in both commercial buildings and residential applications. Before you buy, it helps to understand what makes this type of switch different, and whether it's what you actually need.

What Is a Combination Switch?

A combination switch is a single device that contains two separate switch mechanisms in one wallplate slot. The Leviton 5334-W specifically has two single-pole switches side by side, which means each switch operates independently. This differs from a standard single switch, which controls one circuit. A duplex style combination switch fits into the same space as a regular switch, making it useful when you want to control two separate lights or circuits from one location without taking up extra wall space.

The key word here is "duplex." When manufacturers use this term for switches, they mean two switches in one unit. It's different from a duplex electrical outlet, so don't confuse the two.

Understanding the Leviton 5334-W Specifications

The model number 5334-W tells you specific things about this switch. The "20 amp" rating means it can safely handle electrical loads up to 20 amps. The "120/277 volt" specification indicates it works with both standard household voltage (120V) and higher commercial voltage (277V), which is common in office buildings and larger facilities. The "commercial grade" designation means it meets stricter durability and safety standards than standard residential switches.

The "W" at the end simply indicates the color: white. Leviton makes the same switch in other finishes, but the electrical performance remains identical.

These specifications matter because using the wrong switch can be a safety issue. A 15-amp switch on a 20-amp circuit, for example, creates a fire hazard. If you're replacing an existing switch, check the circuit breaker in your electrical panel. If it's marked 20 amps, you need a 20-amp switch.

Features That Matter in Daily Use

The Leviton 5334-W includes several features worth understanding. It has silver alloy contacts, which are the internal metal pieces that complete the electrical circuit when you flip the switch. Silver alloy doesn't corrode or wear as quickly as cheaper alternatives, which is why commercial-grade switches last longer. The receptacles have double-wire contacts, meaning each terminal connection point can accommodate two wires securely. This increases reliability and conductivity.

The grounding screw is essential for safety. Proper grounding protects you from electrical shock. Terminal screws on this model accept up to number 12 AWG copper or copper-clad wire, which is standard for most household and commercial wiring. If your wiring is thicker than this, you'd need a different switch.

A practical feature is the break-off tab. This small plastic piece can be removed to convert the switch so each side receives power from separate circuit breakers. If you leave the tab intact, both switches share power from the same breaker.

Installation and Compatibility

The Leviton 5334-W fits standard wallboxes, meaning it works with any normal electrical outlet box you'd find in walls built to standard building codes. However, you should verify your box is deep enough to accommodate the switch body and wiring comfortably. Overcrowded boxes make installation difficult and can damage wires.

Installing any electrical switch involves turning off power at the breaker, removing the old switch, and connecting wires to the new one. If you're not comfortable working with live electrical circuits, hire a licensed electrician. Improper installation creates serious safety risks.

When Combination Switches Make Sense

You'd choose the Leviton 5334-W when you need to control two separate circuits from one location and space is limited. Common examples include controlling a ceiling light and a wall fan, or a hallway light and a bathroom light in adjacent rooms. In commercial settings, they're common in offices and utility areas.

The commercial-grade construction makes sense in high-traffic areas where switches get frequent use, or where durability justifies the cost. In a home with normal usage, a standard residential switch works fine, but the Leviton 5334-W won't fail you either.

These switches don't require maintenance beyond occasional dusting. They should last many years without replacement if properly installed.

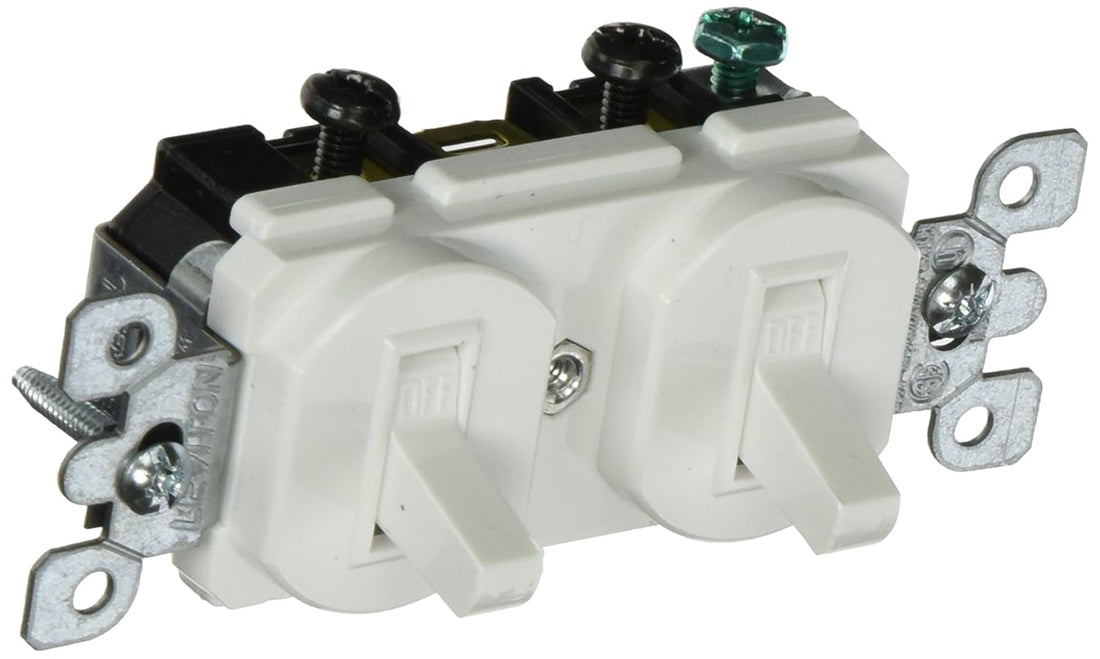

The product in this guide: Leviton 20 Amp, 120/277 Volt, Duplex Style Single-Pole / Single-Pole AC Combination Switch, Commercial Grade, 5334-W, White
