If you're connecting gas lines for an appliance, replacing a damaged valve, or setting up a new installation, you'll need to understand which ball valve is right for your plumbing. The Homewerks Worldwide VGV2LHB4CB is a 0.75-inch female thread gas ball valve designed for liquefied petroleum gas, natural gas, and other applications. But before you buy any gas ball valve, it helps to know what those measurements and specifications actually mean.

What is a Gas Ball Valve and When Do You Need One?

A ball valve is a simple on-off valve that controls the flow of gas through a pipe. Inside the valve is a sphere with a hole through it. When you turn the handle, the sphere rotates to align the hole with the pipe opening, allowing gas to flow. When you turn it the other way, the hole closes off and stops the flow completely.

Gas ball valves are used to connect two pipes that run in the same direction, controlling the supply to appliances like grills, heaters, stoves, and other equipment that use natural gas or liquefied petroleum gas. They're essential safety components that let you isolate the gas supply when you need maintenance or repairs.

Understanding the 0.75-Inch Size and Female Thread Connection

The 0.75-inch measurement refers to the diameter of the pipe opening. This is the size of pipe that will fit into the valve. Before purchasing any gas ball valve, measure the diameter of the pipe you're connecting. Common sizes are 0.5 inch, 0.75 inch, and 1 inch, though others exist. If your pipe is half an inch around, you need a 0.5-inch valve. If it's three-quarters of an inch, you need the 0.75-inch size.

The female thread specification means the valve has internal threads that screw onto a male-threaded pipe or connector. This is different from a male thread valve, which has external threads that screw into female-threaded fittings. You need to match the thread type to what you're connecting to. Look at your existing piping or connector—if it has threads sticking outward, you need a female thread valve. If it has a recessed threaded hole, you need male thread.

Certifications and Safety Standards

The Homewerks Worldwide VGV2LHB4CB is certified to multiple industry standards. It carries CSA CR91-002 certification for use on general piping, and ANSI Z21.15 / CSA 9.1 certification for appliances and appliance connectors. It's also ASME B16.44 certified for use in above-ground piping systems up to 5 PSI. These certifications mean the valve has been independently tested and meets established safety requirements for gas applications. When buying a gas ball valve, always check for these certifications—they're your assurance that the valve is safe for your application.

Materials and Construction

This valve has a 2-piece forged brass body, which provides durability and corrosion resistance. Brass is commonly chosen for gas valves because it's strong and doesn't rust easily. The valve is tested to be 100 percent leak-resistant, which is critical for gas applications where even small leaks can be dangerous.

Installation and Care

The Homewerks Worldwide gas ball valve is designed to be ergonomic and straightforward to install. Make sure your installation complies with local codes and regulations for gas piping. When installing any ball valve, use thread seal tape or a suitable thread sealant on the male threads to ensure a leak-free connection. After installation, apply soapy water to all connections and look for bubbles that would indicate a leak.

Ball valves require minimal maintenance over their lifespan. Occasionally, you can turn the handle back and forth a quarter turn to keep the valve from sticking, but don't operate it excessively. The valve should last many years without replacement if properly installed and not subjected to damage.

Before purchasing the Homewerks Worldwide VGV2LHB4CB or any gas ball valve, verify your pipe size, check your thread type, and confirm the valve meets applicable certifications for your specific use. With the right valve installed correctly, you'll have reliable gas flow control for years to come.

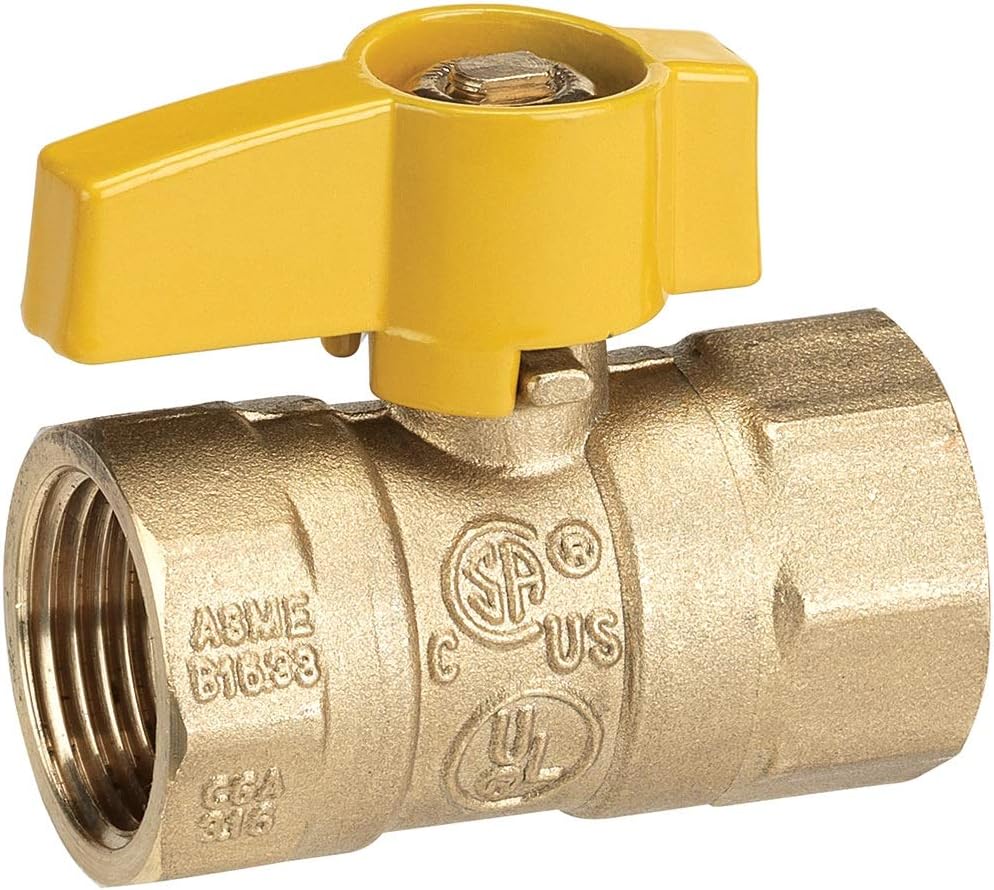

The product in this guide: Homewerks Worldwide VGV2LHB4CB Gas Ball Valve Female Thread, 0.75-Inch, Brass Finish ( Letters on Valve May Vary )
