If you're cooking on a regular basis, you've probably noticed how quickly a kitchen fills with steam, smoke, and cooking odors. An under-cabinet range hood solves this problem by pulling air directly from your cooktop and either venting it outside or recirculating it back into your kitchen. The Broan-NuTone F403611 is a 36-inch under-cabinet model designed to fit most standard kitchen layouts, but before you order one, it's worth understanding what makes a range hood right for your space and how to set it up correctly.

Understanding Range Hood Size and Width

The 36-inch width of the Broan-NuTone F403611 refers to how wide the hood is from left to right. This measurement should match or slightly exceed the width of your cooktop. Most standard home ranges are between 30 and 36 inches wide, so a 36-inch hood works well for typical residential kitchens. If your cooktop is significantly wider or narrower, you'll want to choose a different size model. A hood that's too narrow won't capture steam and smoke effectively, while one that's too wide wastes energy and looks disproportionate above your range.

Ducting Options: The Most Important Decision

Here's where many people get confused about under-cabinet range hoods. The Broan-NuTone F403611 is 4-way convertible, meaning it can be installed in multiple ways depending on your kitchen setup. Understanding these options is crucial.

The first option is ducted installation with rectangular ducting (3.25 by 10 inches), which can run either vertically or horizontally. This is ideal if you can run ductwork up through your cabinets or attic to the outside of your house. Rectangular ducts are common in many kitchens because they fit neatly within standard cabinet spaces.

The second option uses 7-inch round vertical ducting, which some people prefer because it's easier to work with during installation. If you choose this option, note that a damper must be purchased separately. This ducting also vents directly outside.

The third option is non-ducted installation with air recirculation, which means the hood filters the air and pushes it back into your kitchen rather than outside. This works when exterior venting is impossible, such as in apartments or kitchens with no roof or wall access. With this setup, you'll need to purchase a separate recirculation filter. Be aware that recirculation is less effective than true ducting because the air stays in your kitchen.

CFM and Noise: What Those Numbers Mean

The performance specifications on range hoods can look confusing. The Broan-NuTone F403611 delivers a maximum of 230 CFM (cubic feet per minute) with rectangular ducting, or 190 CFM with round ducting. These numbers tell you how much air the hood moves per minute. More CFM means faster removal of smoke and odors, which matters if you do heavy cooking or have a large kitchen.

The hood operates at 6.5 Sones, which measures noise level. Lower is quieter; higher is louder. A 2-speed rocker switch lets you run the fan on low for quiet, everyday cooking and switch to high when you need maximum ventilation. This flexibility helps you balance performance with noise in your kitchen.

Built-In Lighting and Filter Maintenance

The F403611 includes integrated lighting with a protective lens that accepts up to a 75-watt incandescent bulb (not included). This light helps you see your cooktop clearly and is controlled by its own rocker switch for convenience.

One of the easiest parts of owning this hood is cleaning. It comes with a one-piece dishwasher-safe aluminum grease filter that you can simply remove and run through the dishwasher rather than hand-scrubbing with degreaser. This filter needs regular cleaning, especially if you cook frequently. A clean filter keeps the hood working efficiently and prevents grease buildup that can reduce airflow.

Installation Height and Kitchen Layout

Whatever ducting option you choose, the Broan-NuTone F403611 must be installed at least 18 inches above your cooktop. This distance is important for both safety and performance. Too low, and you risk heat damage to the hood; too high, and it won't capture cooking vapors effectively. The hood itself is 6 inches tall and sits 17.5 inches deep, so measure your cabinet space carefully before purchasing to ensure it fits.

Choosing the right under-cabinet range hood means matching your kitchen's layout, selecting a ducting method that works with your home's structure, and understanding the ventilation power you actually need. The Broan-NuTone F403611 offers flexibility across these choices, making it adaptable to different kitchen situations.

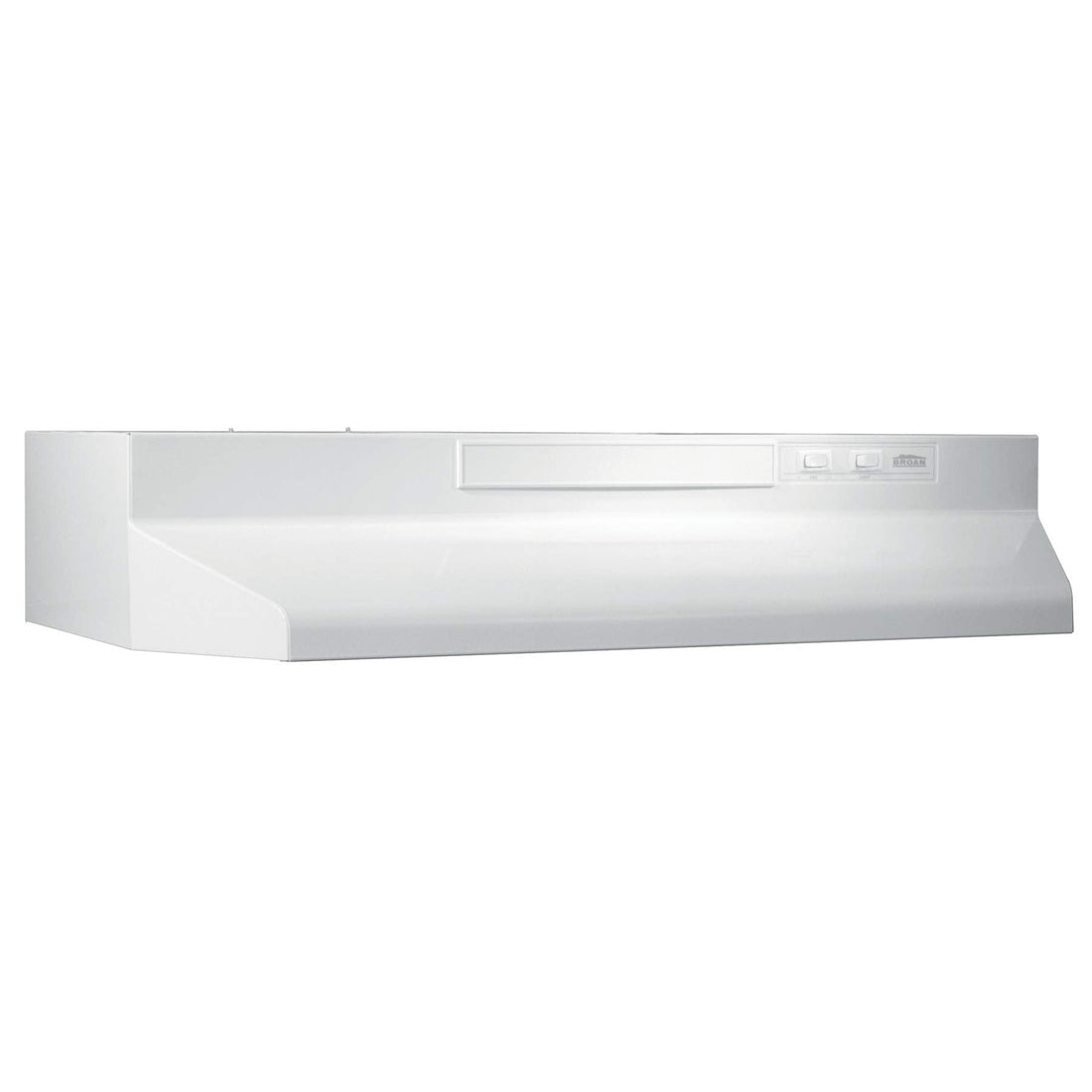

The product in this guide: Broan-NuTone F403611 Two Four White 36-inch Under-Cabinet 4-Way Convertible Range Hood with 2-Speed Exhaust Fan and Light
