If you're considering a range hood upgrade and your kitchen doesn't have ductwork, a non-ducted ductless range hood insert might be your practical solution. The Broan-NuTone 412401 is a 24-inch white under-cabinet model designed to handle everyday cooking ventilation and lighting without requiring external ducting. But before you decide this is the right fit for your kitchen, it helps to understand what a ductless hood does, how it differs from traditional vented hoods, and what ongoing care it needs.

What Is a Non-Ducted Range Hood and How Does It Work

A non-ducted range hood works differently from the vented hoods you might see in kitchens with external exhaust pipes. Instead of pushing air outside, a ductless range hood filters air through a charcoal filter and recirculates it back into your kitchen. This means smoke and cooking odors get trapped in the filter rather than expelled outdoors.

The Broan-NuTone 412401 accomplishes this using an effective non-ducted filtration system. The hood sits underneath your cabinets at a standard 24-inch width and should be installed at least 18 inches above your cooktop. The unit combines ventilation with overhead lighting through a single fixture, so you get both an exhaust fan and task lighting in one compact insert.

Sizing Your Range Hood: Understanding the 24-Inch Width

The first thing to determine is whether the 24-inch size matches your cooktop. Measure the width of your actual cooking surface, not your cabinet width. A 24-inch range hood is typically designed for compact cooktops or kitchens with limited cabinet space. If your stovetop is significantly wider or narrower, this model may not be the best fit.

The 24-inch measurement refers only to the width of the hood insert. Before purchasing, check your under-cabinet space to ensure you have room for installation. You'll also need to confirm that the mounting location provides at least 18 inches of clearance between the hood and your cooktop. Less than this can reduce effectiveness and create safety concerns.

Two-Speed Fan Control and Lighting Features

The Broan-NuTone 412401 includes a 2850 RPM permanently lubricated motor with two fan speeds, controlled by a separate rocker switch. This means you can run the fan at a lower speed for light cooking and bump it up when you're searing meat or frying foods that produce heavy smoke.

The lighting system uses a protective lamp lens that distributes light evenly across your cooktop. It accepts a standard incandescent bulb up to 75 watts, though the bulb is not included. The separate rocker switch for lighting lets you control the light and fan independently, so you can use the light without running the fan during daytime cooking if you prefer.

Understanding Ductless Filtration and Maintenance

The charcoal filter is the heart of your ductless system, and this is where ongoing maintenance comes in. The filter traps grease and odor particles as air passes through it. Over time, the filter becomes saturated and less effective at capturing smoke and keeping your kitchen fresh. Unlike ducted hoods where air simply exits, a ductless hood depends entirely on filter quality.

You'll need to replace the charcoal filter periodically. How often depends on your cooking frequency and the types of foods you prepare. Heavy daily cooking means more frequent replacement than occasional use. Check the filter regularly and replace it when you notice that smoke or cooking smells aren't being captured as effectively as they once were. A clean filter keeps your kitchen more pleasant and ensures the hood performs its job properly.

Regular cleaning of the polymeric blade and light lens also helps maintain optimal performance. These parts collect grease and dust over time and can be wiped clean.

Is a Ductless Hood Right for Your Kitchen

Ductless hoods work well if you don't have the ability to install exterior venting, if your kitchen is in an apartment with no ductwork access, or if you want a simpler installation without tearing into walls or cabinets. They're also quieter than ducted models in many cases.

However, ductless hoods are less effective at removing cooking odors completely since they recirculate air rather than eliminate it. If you cook frequently with strong-smelling ingredients or have a very open kitchen layout, a traditional vented hood would serve you better if installation is possible.

The Broan-NuTone 412401 is a solid choice if you need compact 24-inch under-cabinet ventilation without ductwork, you're comfortable replacing filters periodically, and you want combined lighting and fan control in one unit. Measure your space carefully, understand that filter replacement will be necessary, and you'll have a functional hood that handles everyday cooking ventilation and lighting needs.

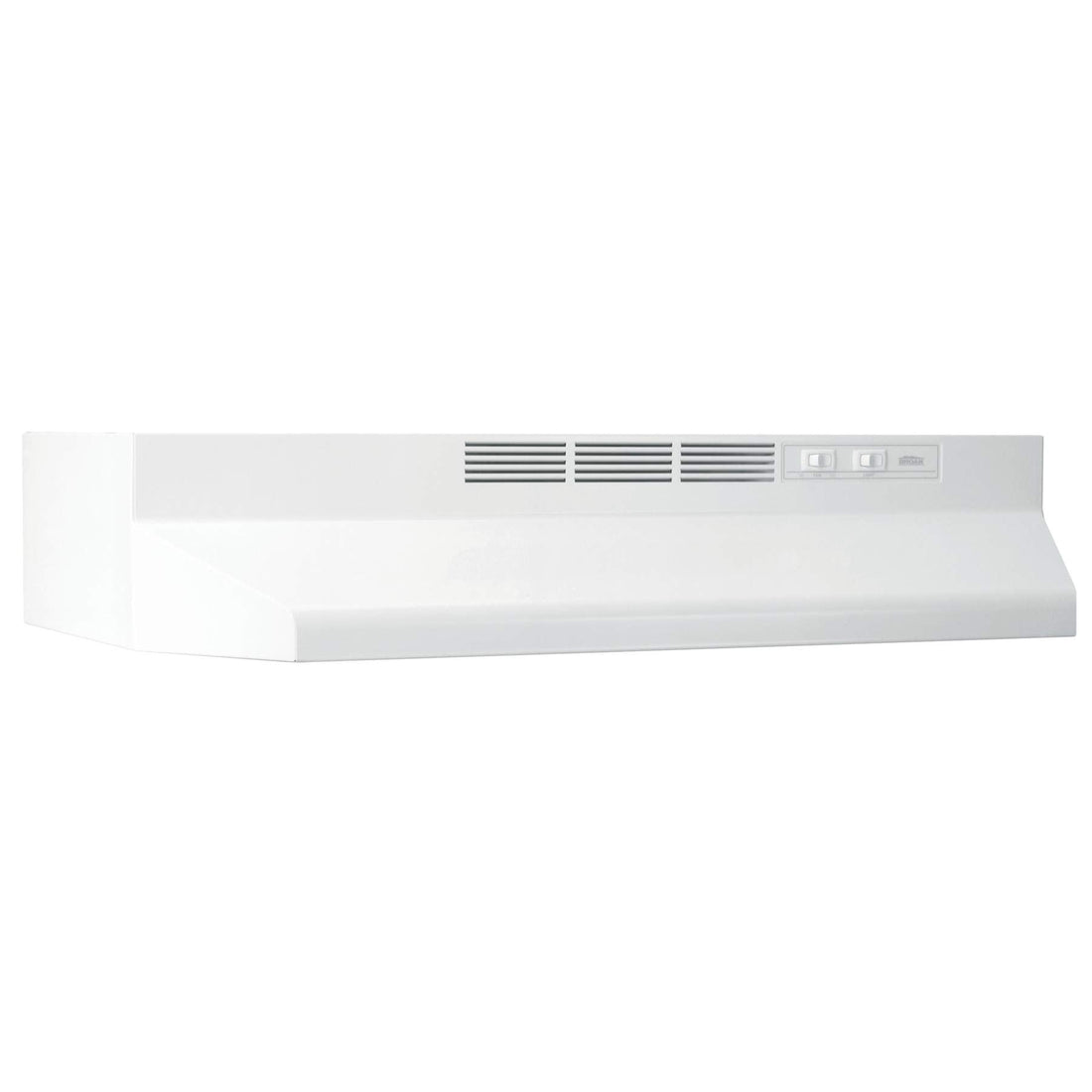

The product in this guide: Broan-NuTone 412401 Non-Ducted Under-Cabinet Ductless Range Hood Insert, 24-Inch, White
