Pyle Hydra Marine Amplifier - Upgraded Elite Series 240 Watt 4 Channel Audio Amplifier - Waterproof, 4-8 Ohm Impendance, GAIN Level Controls, RCA Stereo Input & LED Indicator (PLMRA120)

Brand: Pyle

Features:

• PREMIUM 4 CHANNEL AMPLIFIER: Pyle’s PLMRA120 is engineered as a 4 Channel marine amplifier that allows high quality stereo reproduction from source. This will power up your speaker and universally compatible with a variety of head units.
• RCA STEREO INPUT: For an easier use of this hydra marine amplifier, it comes with premium RCA inputs. If your marine receiver lacks RCA output jacks, you can connect speaker output leads to the high-level terminal inputs.
• SHORT PROTECTION: Built with a heavy duty Aluminum Alloy heatsink, thermal overload speaker short protection and LED light indicator. These are to protect the amp and your vehicle's electrical system from short circuit conditions.
• POWERFUL 240 WATT: This amplifier is powerful with its IC Power 120 Watts x 2 Output power supply. Comes with dual adjustable input GAIN level controls between 4 or 8 Ohm speaker impedance.
• MARINE GRADE: With its Marine rating of IP-01, it is waterproof ready. It’s constructed with gold-plated speaker output terminal connectors as well to combat corrosion with long term use.
• Note: Ensure that the power source is the correct voltage/amperage, also check the wiring and speaker load
• Waterproof two-channel power amplifier with 2 x 120 Watts maximum output
• High-level terminal inputs and gold-plated low-level RCA inputs with adjustable input level
• Overload, Short Circuit, and Thermal protection; heavy-duty aluminum heatsink
• Ready for either 4- or 8-ohm speakers, in pair
• Remote turn-on/off connector

Details: Amazon.com

This Pyle Hydra amp will power your speakers on the dock, in your boat, or by the pool--it's completely waterproof. This 2-channel, 240-watt marine amp takes both high- and low-level inputs, so it's compatible with a variety of head units and sources. Remote turn/on off makes controlling the amp a breeze, and gold-plated RCA inputs mean it won't be a weak link in your setup. Power your speakers on the dock, in your boat, or by the pool. Click here for a larger image View a connection diagram. Click here for a larger image Input Options

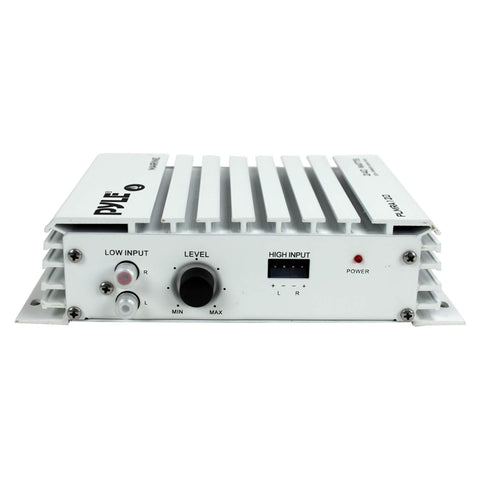

The PLMRA120 features low-level RCA inputs for sources that use RCA-type connectors. If your marine receiver lacks RCA output jacks, you can connect speaker output leads to the high-level terminal inputs. Input Level Control
Adjust the line level input for the least amount of distortion to match your source unit. Protection
Protect the amp and your vehicle's electrical system from short circuit conditions with built-in fuse protection, along with overload, thermal and short circuit protection. A heavy duty aluminum alloy heatsink helps prevent any thermal issues. 4 or 8 Ohm Speaker Impedance
The PLMRA120 is ready for either 4- or 8-ohm speakers, in pair. Remote Turn-On/Off

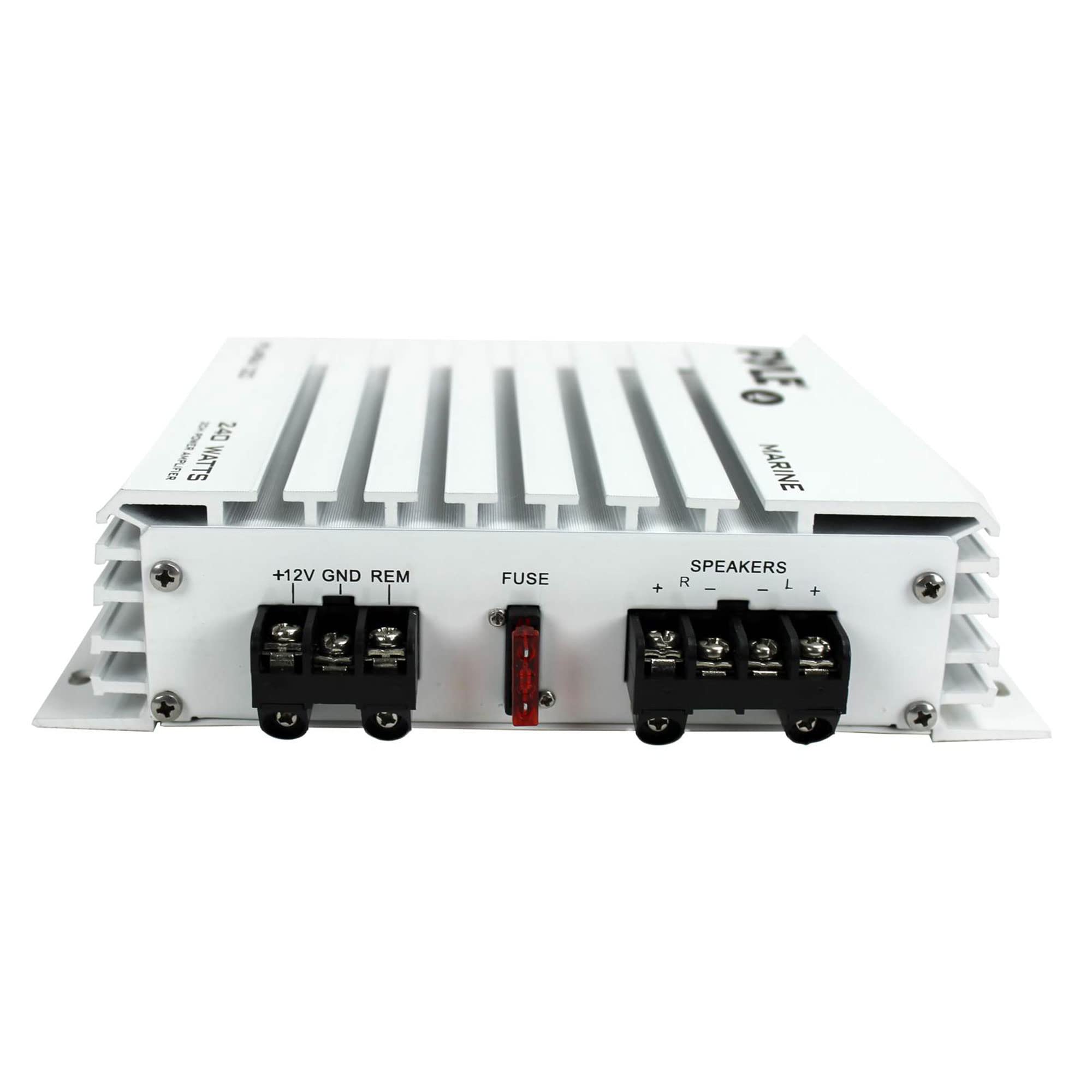

Wire the PLMRA120 to turn on and off in tandem with your receiver/head unit. Pyle PLMRA120 Select Specifications Power Rating: 120 Watts x 2 Maximum (70 Watts x 2 RMS)
T.H.D: 0.05% S/N Ratio: > 80dB Power Supply Voltage: 12V DC Neg. Ground (11-16V) Frequency Response: 20 Hz-30 KHz Input Impedance: Low Level: 10K Ohms
High Level: 100 Ohms Input Sensitivity: Low Level: 300mV
High Level: 3V Dimensions: 7.87 x 2 x 5.2 Inches (L x W x H) What's in the Box
Pyle PLMRA120 Amplifier, Mounting Hardware, User's Manual

Product Description

Pyle Marine 2 channel 240W amplifier

EAN: 0696582496449

Package Dimensions: 9.3 x 9.0 x 3.0 inches

Binding: Wireless Phone Accessory

Part Number: PLMRA120

model number: PLMRA120
