If you're researching relay modules for an industrial automation project, you've likely encountered technical specifications that feel overwhelming. The Waveshare Modbus RTU 32-Ch Relay Module with RS485 interface is a sophisticated piece of equipment designed for specific applications. Understanding what it does and whether it's right for your needs requires stepping back from the jargon to think about your actual problem.

What This Relay Module Actually Does

At its core, the Waveshare Modbus RTU 32-Ch Relay Module is a device that lets you control up to 32 electrical circuits remotely via an RS485 connection. Think of it as a smart electrical switchboard. Instead of manually flipping switches, you send commands over a communication line, and the module switches power on or off to connected devices. Each relay can handle up to 10 amps at 250 volts AC or 30 volts DC, which covers most industrial and commercial equipment.

The module mounts on a standard rail system, which means it fits into the kind of electrical cabinet you'd see in factories, control rooms, or server facilities. It's not a consumer gadget. It's built for environments where reliability matters.

Key Features That Solve Real Problems

The Waveshare Modbus RTU 32-Ch Relay Module includes several protective features that prevent costly failures. The onboard resettable fuse and TVS (Transient Voltage Suppressor) handle voltage spikes and surges that could otherwise destroy connected equipment. Optocoupler isolation keeps the control signals separate from high-voltage circuits, reducing interference and improving safety.

The wide voltage power supply range—7 to 36 volts—means you can run this from various industrial power sources without needing a separate converter. The onboard unibody power supply isolation provides stable voltage to the isolated terminal without requiring extra equipment.

You can configure device addresses from 1 to 255, allowing multiple modules to work together on the same RS485 bus. This cascading capability is essential if you need to control more than 32 circuits or if your installation spans multiple locations.

Is This the Right Tool for Your Project

Before purchasing a Waveshare Modbus RTU 32-Ch Relay Module, ask yourself these questions: Do you need to control many electrical circuits remotely? Are you working in an industrial or commercial environment? Do you have existing RS485 infrastructure or the technical knowledge to implement it? Can your application tolerate the learning curve of Modbus RTU communication protocols?

This module is not for simple home automation. It's not for someone who wants to flip lights on and off through an app. It's for engineers, technicians, and systems integrators who understand electrical systems and can write or configure control software.

The flash-on and flash-off functions let you turn relays on for a specific duration before they automatically close. This is useful for timed operations like actuators, pumps, or machinery that need precise timing without continuous monitoring.

Installation and Operation Considerations

The rail-mount ABS case means installation is straightforward if you're familiar with electrical cabinets. Three onboard LEDs indicate MCU status and signal transmission, helping you troubleshoot connection problems without extra equipment.

The Modbus RTU protocol itself requires understanding how to structure commands properly. If you're not familiar with Modbus communication, you'll need documentation or technical support. Many industrial control systems already speak Modbus, so integration may be simpler if you're expanding an existing setup.

The reverse-proof circuit protection is a practical feature that prevents damage if someone accidentally connects wires incorrectly during installation. Combined with the dedicated relay driver chip with built-in freewheeling diode protection, the module handles real-world installation mistakes better than simpler designs.

Final Thoughts on the Waveshare Modbus RTU 32-Ch Relay Module

The Waveshare Modbus RTU 32-Ch Relay Module is genuinely useful for industrial automation, remote control systems, and commercial applications that require reliability and multiple circuit control. It's not a casual purchase—it's a component that fits into larger systems. Make sure you understand Modbus RTU communication and have a genuine need for 32-channel relay control before committing. If your project genuinely requires industrial-grade remote relay control with multiple isolation protection circuits, this module delivers the features to back that up.

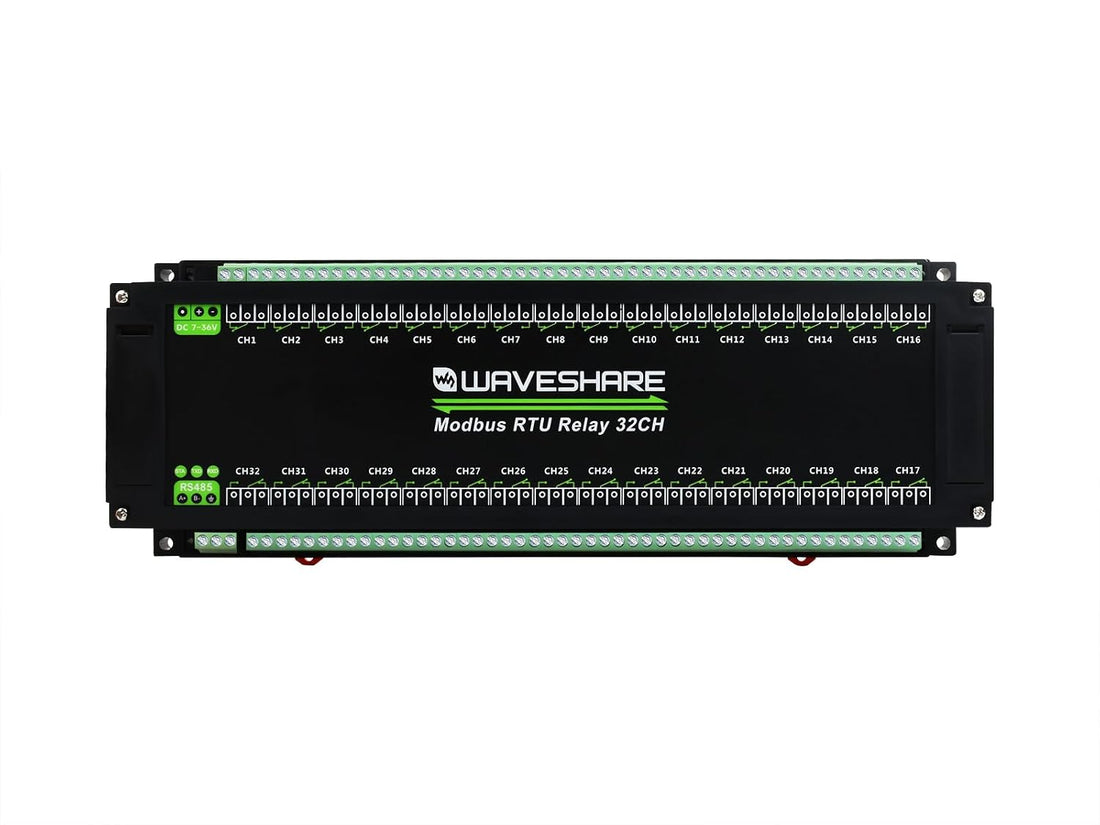

The product in this guide: Waveshare Modbus RTU 32-Ch Relay Module, RS485 Interface, with Multiple Isolation Protection Circuits, Industrial-Grade, Rail-Mount Case
