Wall-mounted televisions look cleaner and save floor space, but choosing the right mounting bracket requires understanding a few key specifications. A full motion TV wall mount lets you adjust the viewing angle after installation, which is useful if your seating arrangement isn't directly in front of the screen. This guide explains what to look for when considering a mount like the USX MOUNT full motion TV wall mount, and how to determine if it will work with your television.

Understanding VESA and Weight Specifications

The first thing to check is whether your TV is compatible. Two numbers matter: weight and VESA pattern. VESA stands for Video Electronics Standards Association, and it describes the distance between the mounting holes on the back of your television. Your TV's manual or the manufacturer's website will list this as a measurement like 200x100mm or 600x400mm.

The USX MOUNT bracket accommodates VESA patterns from 200x100mm up to 600x400mm and supports TVs weighing up to 132 pounds. Before purchasing, locate your television's VESA measurement and weight. Most TV manuals include this information, or you can search the manufacturer's specifications online using your exact model number. If your TV's VESA falls within the range of 200x100mm to 600x400mm and weighs less than 132 pounds, this mount should work for you.

Wall Type and Stud Location

Installation depends heavily on what's behind your drywall. TVs this size need secure mounting into wall studs, which are the wooden or metal framing members that hold up your walls. Standard studs are spaced either 16 inches or 24 inches apart. The USX MOUNT full motion TV wall mount for 47-84 inch televisions fits walls with studs spaced 8, 12, or 16 inches apart, which covers most residential homes built in the last several decades.

Before installation, locate your wall studs using a stud finder. This is a genuinely important step and worth spending a few minutes on. Never rely on guessing or tapping on the wall. Once you've found the studs, measure the distance between their centers to confirm spacing. If your studs are 24 inches apart, this mount may not be ideal.

Adjustability and Viewing Angles

Full motion mounts offer flexibility that fixed brackets don't. The USX MOUNT includes dual articulating arms, meaning the bracket can swivel side to side by up to 45 degrees and tilt vertically by 5 degrees up or 15 degrees down. After installation, you can make fine adjustments of 3 degrees in either direction to level the screen perfectly.

This adjustability solves real problems. If your main seating is slightly off to one side, or if you want to angle the screen downward slightly from a tall wall, full motion mounts handle these situations. However, understand your room layout before buying. If your seating is more than 45 degrees away from the wall, or if you need significant downward tilt, measure first.

Clearance and Extension Distance

The bracket extends between 2.4 inches and 16.5 inches from the wall. This matters if you have furniture, shelving, or other items near the installation point. In fully retracted position, it sits quite close to the wall. In fully extended position, it projects significantly outward, which is useful if you want to position the TV away from the wall for better viewing angles from a reclined position.

Think about what's behind where you'll install the mount. Is there a light switch, outlet, or cable routing that might interfere? The extension capability gives you options, but the extended position does stick out further than simple fixed brackets.

What Comes With Installation

The USX MOUNT bracket includes all standard mounting hardware in pre-labeled bags, a bubble level for ensuring the mount is even, and cable ties for organizing wires. You'll need a drill and the appropriate drill bits for your wall type. The package does not include concrete anchors; if you're mounting on concrete or need them for drywall backup, you can request 10x50mm anchors separately.

Installation takes a couple of hours if you're comfortable with basic tools. The detailed instructions help you identify which screws go where. Take your time locating studs and drilling pilot holes.

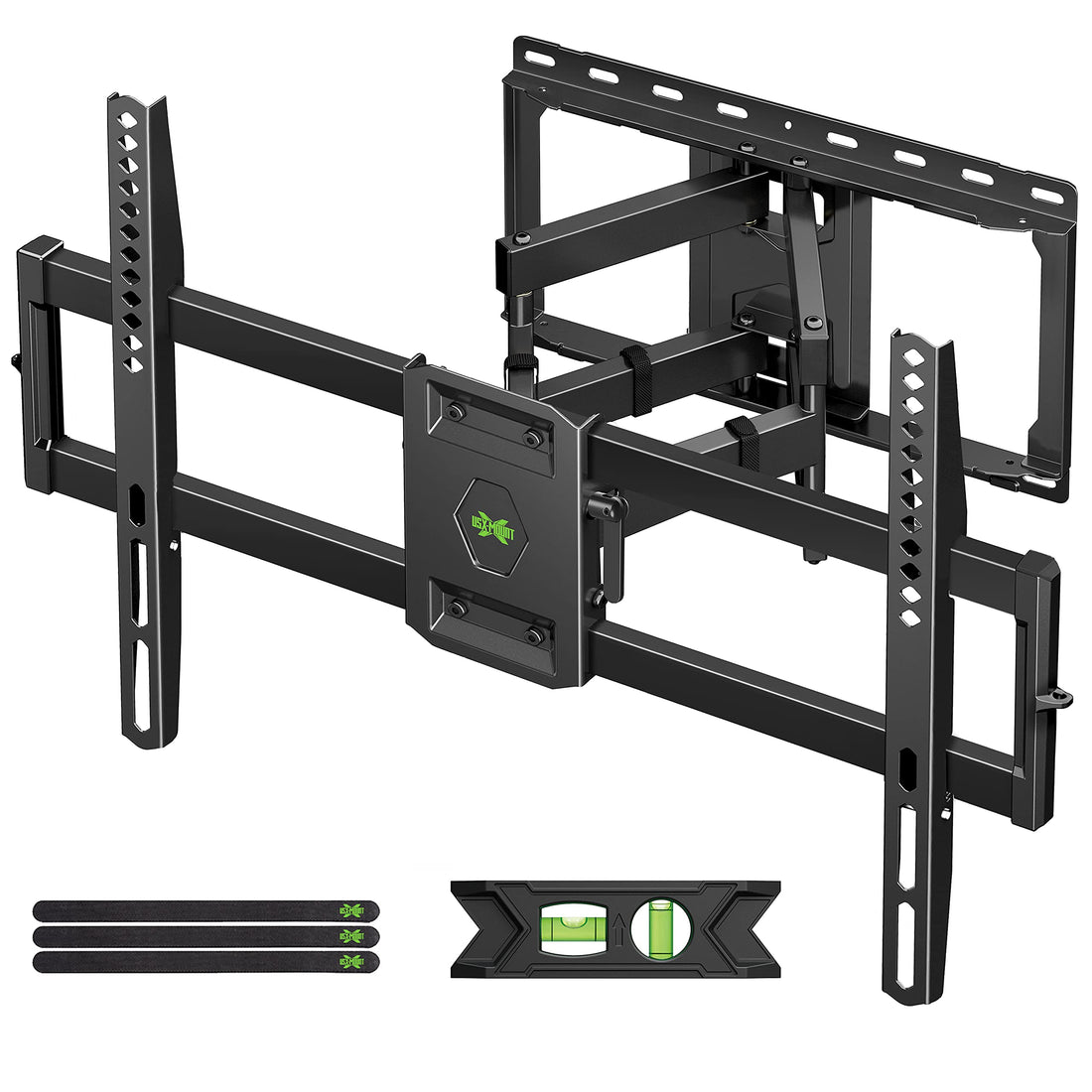

The product in this guide: USX MOUNT Full Motion TV Wall Mount for Most 47-84 inch Flat Screen/LED/4K TV, TV Mount Bracket Dual Swivel Articulating Tilt 6 Arms, Max VESA 600x400mm, Holds up to 132lbs, Fits 8” 12” 16" Wood Studs
