A leaking frameless shower door creates a mess that spreads beyond the bathroom. Water seeps across the floor, potentially damaging adjacent rooms and creating a slip hazard. A worn or missing bottom seal is often the culprit. Replacing it is straightforward and affordable, but you need to make sure you buy the right one. The Prime-Line M 6256 is a common solution for this problem, but it only works if your door matches its specifications.

Understanding Your Glass Thickness

The single most important thing to verify before buying any frameless shower door seal is the thickness of your glass. This is not something you should guess. The Prime-Line M 6256 Frameless Shower Door Bottom Seal is designed specifically for 1/4 inch thick glass doors. If your glass is thicker or thinner, this seal will not fit properly and will not create a watertight barrier.

To check your glass thickness, open your shower door fully and look at it from the side. The edge will show the actual depth of the glass. You can also measure it with calipers or even a ruler held flat against the edge. Some shower doors have the thickness printed on a sticker near the hinge or frame. If you are unsure, measure multiple spots around the door to ensure consistency.

Length and Trimming

The Prime-Line M 6256 comes at 36 inches long. This is a standard width for many shower enclosures, but not all. Before ordering, measure the width of your shower opening at the bottom, from one side of the frame to the other. If your door is smaller than 36 inches, the seal can be trimmed to fit. If your door is wider, this particular seal will not work for you.

When you receive a 36 inch seal and need to trim it, use a utility knife or sharp scissors. Mark your cut line clearly and cut slowly. A crooked cut will create gaps where water escapes. Some people find it helpful to tape the cut line first to guide the blade.

How Frameless Door Seals Work

Frameless shower doors are held together by hinges and minimal hardware, with no framing around the edges. This means water containment relies entirely on the seals. The Prime-Line M 6256 features a dual flap design and a 45-degree drip guard. The dual flaps press against both sides of the glass to catch water, while the drip rail directs any remaining moisture downward and outward, away from the bathroom floor.

The clear vinyl material is durable and flexible enough to accommodate slight irregularities in the glass edge. Unlike adhesive seals, the Prime-Line M 6256 uses a slip-on design. This means you slide it over the bottom edge of the glass rather than gluing it down. Slip-on seals are easier to install and easier to replace later.

Installation and Maintenance

Installation requires no tools or adhesives. Simply position the seal over the bottom edge of your glass door and slide it into place. Make sure it sits evenly along the entire length with no twists or gaps. If you trimmed the seal, start at one end and work your way along, ensuring the flaps face downward and outward.

To maintain your seal, wipe it down weekly with a soft cloth. Vinyl can collect mineral deposits from hard water, which reduces its effectiveness over time. A simple cloth dampened with white vinegar removes these deposits. Avoid harsh scrubbing, which can damage the flaps.

When to Replace Your Seal

A shower door bottom seal typically lasts several years depending on water hardness, frequency of use, and cleaning habits. Signs that replacement is needed include visible cracks in the vinyl, permanent bending of the flaps that prevents them from sealing, or water pooling on the bathroom floor outside the shower. If water starts leaking again after you have replaced the seal, double-check that you selected the correct thickness and that the seal is positioned correctly.

When you are ready to replace your Prime-Line M 6256 Frameless Shower Door Bottom Seal for 1/4 in. thick glass, simply slide the old one off and the new one on. No cleanup or residue remains.

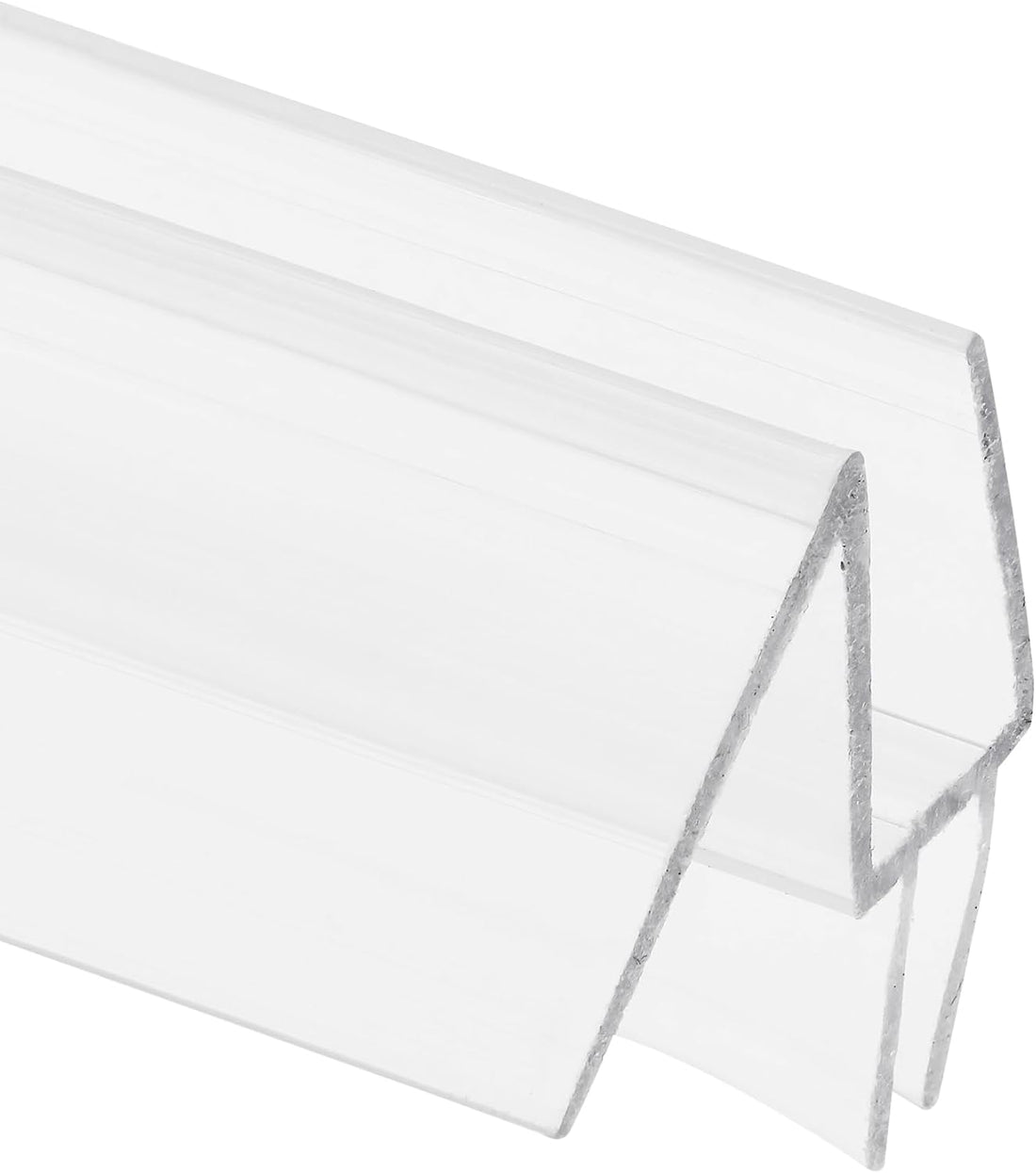

The product in this guide: Prime-Line M 6256 Frameless Shower Door Bottom Seal for 1/4 in. Thick Glass Doors, Dual Flap and 45 Degree Drip Guard, 36 in., Clear Vinyl (Single Pack)
