If you work with plywood regularly, you've probably noticed that standard plywood thickness doesn't always match the nominal measurement on the label. A sheet labeled as 3/4 inch plywood is often slightly thinner in reality. This inconsistency creates a real problem when you're cutting mortise joints: a router bit sized to the actual label measurement will leave gaps, and joints won't fit tight. The Bosch 84602MC carbide-tipped plywood mortising router bit solves this by using an undersized cutting diameter designed specifically to match the true thickness of standard 3/4 inch plywood.

What Makes a Mortising Bit Different

A mortising router bit is built to cut clean rectangular slots and recesses used in traditional joinery. Unlike trimming bits or edge-forming bits, mortising bits have a specific geometry that allows them to cut straight-walled cavities where furniture parts, hinges, or decorative elements fit precisely. The Bosch 84602MC features reinforced shanks made from fully hardened and tempered steel, which prevents flexing during the cutting process and helps you achieve the clean, tight joints that good cabinetry requires.

What sets this bit apart is the micrograin carbide tip, an upgraded material engineered for both precision and longevity. Carbide stays sharp longer than standard steel, resists heat buildup during extended use, and maintains its edge through many projects. Bosch applies a heat-treating process to their carbide that specifically addresses the temperature stress that occurs during router work, making the bit more durable than budget alternatives.

Understanding the 23/32 by 3/4 Inch Specification

The numbers in the product name indicate two critical measurements. The 23/32 inch refers to the cutting diameter, and the 3/4 inch refers to the cutting depth. Here's why this matters: the cutting diameter is what actually determines the width of the slot you're creating. Because this bit is specifically designed for plywood joinery, the manufacturer undersized the diameter to 23/32 inches to match the real-world thickness of standard 3/4 inch plywood stock.

When you're selecting a mortising bit, verify the actual thickness of your plywood with a caliper before ordering. While nominal sizing follows standards, slight variations occur between manufacturers and even between batches. The cutting depth of 3/4 inch tells you how deep your mortise will be, which should match your design requirements. If you're working with thinner material or need deeper cuts, you'll need a different bit from Bosch's comprehensive line of router bits.

Caring for Carbide Router Bits

Carbide-tipped bits last significantly longer than standard steel, but they still require proper care to maximize their lifespan. Keep your bit clean and dry between uses. Dust and resin buildup reduce cutting efficiency and can cause overheating. A soft brush and compressed air work well for cleaning; avoid soaking the bit or using harsh solvents that could affect the brazing that holds the carbide tip to the steel shank.

Router bits generate substantial heat during operation. Allow the bit to cool naturally before storing it, and never touch the carbide tip with your bare hands. Store bits in a dry location, ideally in individual slots or cases where they won't knock against other tools. Even though carbide resists wear, it remains brittle and can chip if dropped or struck.

Working with the Bosch 84602MC for Quality Results

Before starting a project, test your setup on scrap plywood. Check that your router speed is appropriate for the bit diameter, and that your feed rate is steady and controlled. Rushing the cut puts stress on the carbide and can produce rough edges. A consistent, unhurried pass creates the smooth finish that the Bosch 84602MC is designed to deliver.

The design of the Bosch 84602MC carbide-tipped plywood mortising router bit solves the real frustration of undersized plywood, making it a practical choice for cabinetmakers and woodworkers who routinely work with standard plywood stock. Understanding your specific thickness requirements and maintaining the bit properly will give you reliable, tight-fitting joints across many projects.

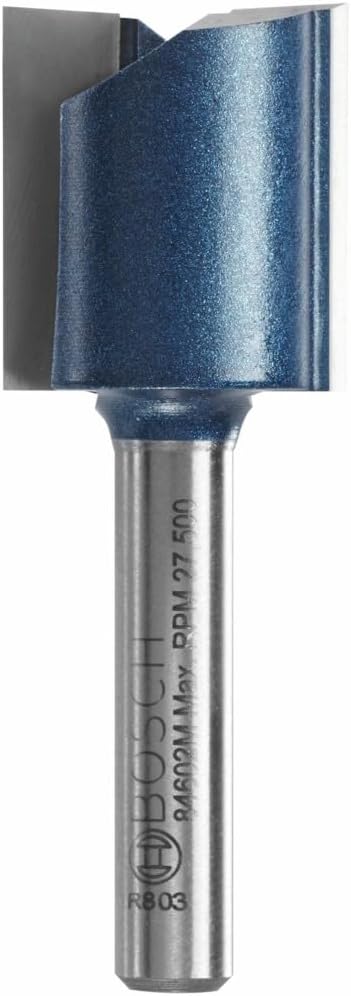

The product in this guide: Bosch 84602MC 23/32 in. x 3/4 in. Carbide-Tipped Plywood Mortising Router Bit
