V-belts are one of those components that quietly keep machines running until they wear out, at which point you suddenly need to know what you're replacing. If you've landed here because you're shopping for a belt, or you're trying to figure out whether a V-belt is what you actually need, this guide will walk you through the essentials.

What Is a V-Belt and When Do You Need One

A V-belt is a power transmission belt with a distinctive trapezoidal cross-section that sits in a matching groove on pulleys. It transfers motion and power from one rotating shaft to another, which means you'll find V-belts in everything from industrial machinery and pumps to air compressors and older appliances. The V-shape keeps the belt centered and gripped in place, which makes these belts reliable for applications where slipping isn't an option.

If your equipment has stopped working and you can see a rubber belt connecting two pulleys, you likely need a V-belt replacement. If you hear squealing from your machinery, a worn belt might be the culprit. The good news is that replacing a V-belt is usually straightforward once you know the right size.

Reading V-Belt Specifications: Size, Width, and Circumference

V-belts are categorized by their cross-sectional type (often called the belt profile) and their length. The profile letters include A, B, C, and X series, each one representing different width and height dimensions. The BESTORQ C120 is a classic wrapped rubber belt with an X3 profile, which tells you about its construction method and performance characteristics.

The "C120" in the model number refers to the belt's circumference. Specifically, the BESTORQ C120 has a 124-inch outside circumference and a 120-inch inside circumference. The additional measurements you need to match are the width (0.87 inches for this model) and the height (0.57 inches). These three dimensions—circumference, width, and height—must all match your equipment's pulley grooves and original belt specifications.

To find out which belt you need, locate the old belt on your machine and look for any markings printed or molded into it. Manufacturers often stamp the belt length and type right onto the rubber. If there's no visible marking, measure the outside circumference by wrapping a tape measure around the belt while it sits in the pulleys, and measure the width and height of the groove where it sits. Cross-reference these measurements against your equipment's manual if you have it.

Classic Wrapped Construction and What It Means

The BESTORQ C120 uses classic wrapped construction, which means the belt's core components are enclosed in a fabric wrapper. This design provides protection for the tensile cords underneath while offering excellent grip on the pulley grooves. The fabric wrapping also extends the working life of the belt by protecting against dust, moisture, and minor abrasion.

Inside the belt are helically wound tensile cords made from pre-stretched polyester material. These cords carry the load and resist stretching during operation. Because the cords are engineered to minimize elongation, a properly installed belt won't require constant retensioning—though you should always follow the manufacturer's recommended tension specifications when you first install it.

Installation and Maintenance for Longer Belt Life

When you install a new V-belt like the BESTORQ C120, proper tension is critical. Too loose, and the belt will slip and wear quickly. Too tight, and you'll put unnecessary stress on bearings and shorten the belt's life. Most equipment manuals specify exactly how much deflection (flex) the belt should have when you apply light pressure to it. Follow this guidance during installation.

Once installed, keep the belt and pulleys clean and dry. Debris caught between the belt and pulley will accelerate wear. Check the belt periodically for cracks, fraying, or unusual wear patterns, which might indicate misalignment of the pulleys. A belt that's slipping or squealing is usually a sign that tension needs adjusting, though it can also mean the belt has reached the end of its life.

Replacement frequency depends on operating conditions. A belt running 24/7 under heavy load will wear out faster than one used intermittently in light-duty applications. Most V-belts last anywhere from a few months to several years, but regular inspection helps you catch problems before your machine stops running.

Finding the Right Belt for Your Equipment

The BESTORQ C120 is one specific size, so it's only right for equipment designed to use a belt with those exact measurements. Don't assume all V-belts are interchangeable—they're not. Always verify the circumference, width, and height before ordering. If you're unsure, contact the manufacturer of your equipment or take a photo of your current belt with any visible markings and have a supplier help you match it.

Classic wrapped V-belts like the BESTORQ C120 are widely used across industries because they're reliable, easy to install, and require minimal maintenance. Taking the time to get the right size and following basic installation practices will keep your machinery running smoothly.

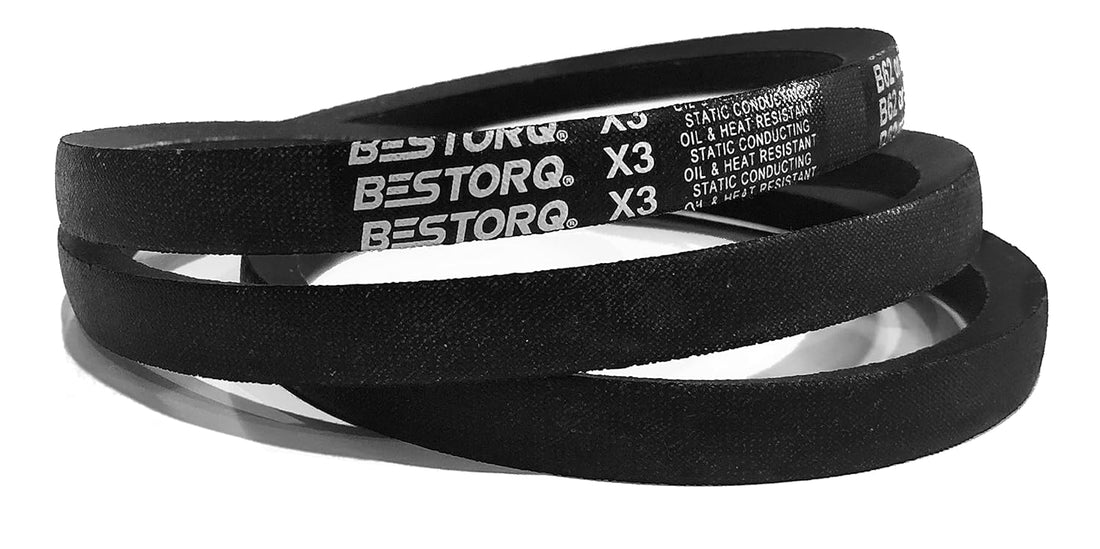

The product in this guide: BESTORQ C120 V-Belt, Classic Wrapped Rubber X3 V-Belt, Black, 124" Outside Circumference x .87" Width x .57" Height, (Pack of 1)
