Mounting a television on your wall transforms how a room looks and functions. But choosing the right mount depends on several practical factors that many people overlook. This guide walks you through what matters when selecting a TV wall mount, using the Amazon Basics AM40A as a reference point for understanding the specifications you'll encounter.

Understanding TV Wall Mounts and Their Types

TV wall mounts come in three basic varieties. Fixed mounts bolt your television flat against the wall with no adjustment. Tilting mounts let you angle the screen up or down to reduce glare or adjust for seating height. Full motion articulating mounts, like the Amazon Basics model, swing outward from the wall and rotate side to side, offering the most flexibility for positioning.

Full motion mounts work best if your seating area covers a wide space, if you watch from different angles, or if you want to pull the TV away from the wall occasionally for access to cables behind it. They're also helpful in rooms where windows create glare, since you can adjust the angle to minimize reflections.

Checking Your TV's Size and VESA Pattern

Before buying any mount, you need two pieces of information about your television: the screen size and the VESA pattern. Screen size is straightforward—measure diagonally from corner to corner. The Amazon Basics AM40A fits televisions from 26 inches up to 55 inches.

VESA refers to the distance between the mounting holes on the back of your TV. It's expressed as width by height in millimeters. Common VESA patterns are 100x100 mm, 200x200 mm, 400x400 mm, and sizes in between. The Amazon Basics AM40A is compatible with VESA patterns from 100x100 mm through 400x400 mm, which covers most modern televisions. Check your TV's manual or look at the back of the unit to find your specific VESA measurement.

Weight Capacity and Wall Construction Matter

The Amazon Basics AM40A supports televisions weighing up to 80 pounds. Verify your TV's weight by checking its specifications or the original box. Most TVs in the 26 to 55 inch range fall well within this limit, but if you have an especially heavy model, confirm the weight before purchasing.

This mount is designed for installation on concrete, brick, or wood studs. If you have drywall, you must locate and mount into the wooden studs behind it. Never mount a television solely to drywall without stud support—it won't hold safely. If your walls are plaster, concrete block, or another material, check your specific wall type before proceeding.

Articulation, Swivel, and Tilt Range Explained

The articulating arm on the Amazon Basics AM40A extends from 2.6 inches to 16.3 inches from the wall. This lets you pull the screen toward you for better viewing angles or tuck it back flush when not in use. The mount swivels 180 degrees, meaning you can rotate the TV nearly halfway around for viewing from different parts of the room. The tilt range is 10 degrees upward and 5 degrees downward, allowing fine adjustments to eliminate neck strain or reflections.

These ranges give you substantial flexibility. However, understand that a full motion mount does require more wall space than a fixed option, since the extended arm takes up several inches.

Installation and Ongoing Care

The Amazon Basics AM40A includes a bubble level, mounting template, and hardware to simplify installation. The template shows exactly where to drill holes before you begin. Take time to use the level—a crooked mount looks wrong and can stress the mechanism unevenly over years of use.

Once mounted, check tightness occasionally. Vibration from heavy use can gradually loosen bolts, especially if you frequently adjust the TV's position. A simple periodic inspection prevents problems before they develop. Keep the joints clean and free of dust, which helps the articulating mechanism move smoothly long-term.

Whether the Amazon Basics AM40A model is right for you depends on your room layout, where people sit, and how much flexibility you want in positioning your screen. A full motion mount offers the most options, but ensure your wall construction, TV size, and weight all align with the specifications before you commit to installation.

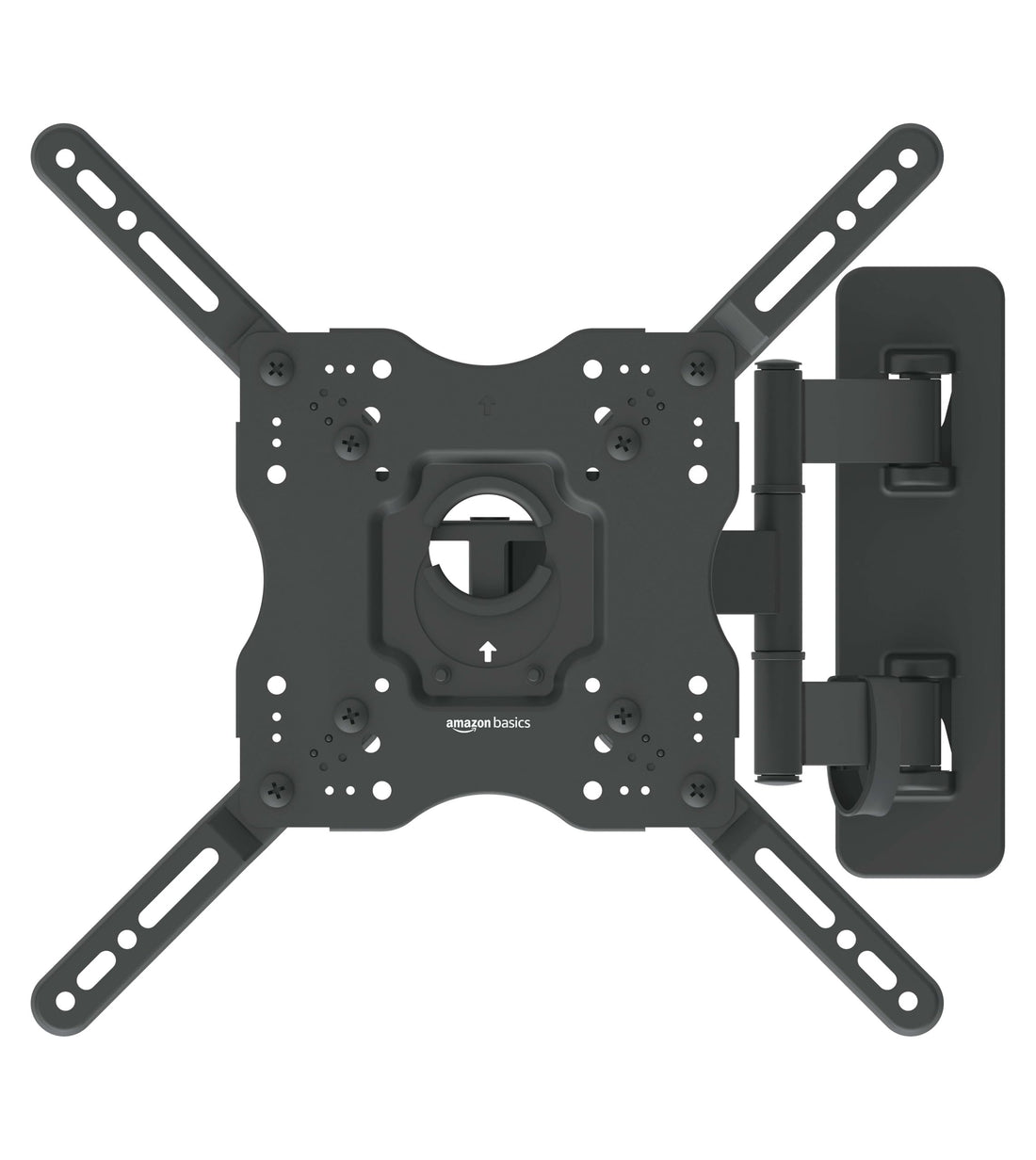

The product in this guide: Amazon Basics Full Motion Articulating TV Wall Mount, with Swivel and Tilt, for 26" to 55" TVs and Flat Panels up to 80 Lbs, VESA Compatible, Black
